Bed
| Metric | Value |
|---|---|
| MCU | STM32F402RCT6 |
| Vendor Id | 1d50 |
| Product Id | 614e |
| Device BCD | 2.00 |
| Product | STM32 Virtual ComPort |
| Manufacturer | ShenZhenCBD |
Credit to rabirx on the OpenCentauri Discord.

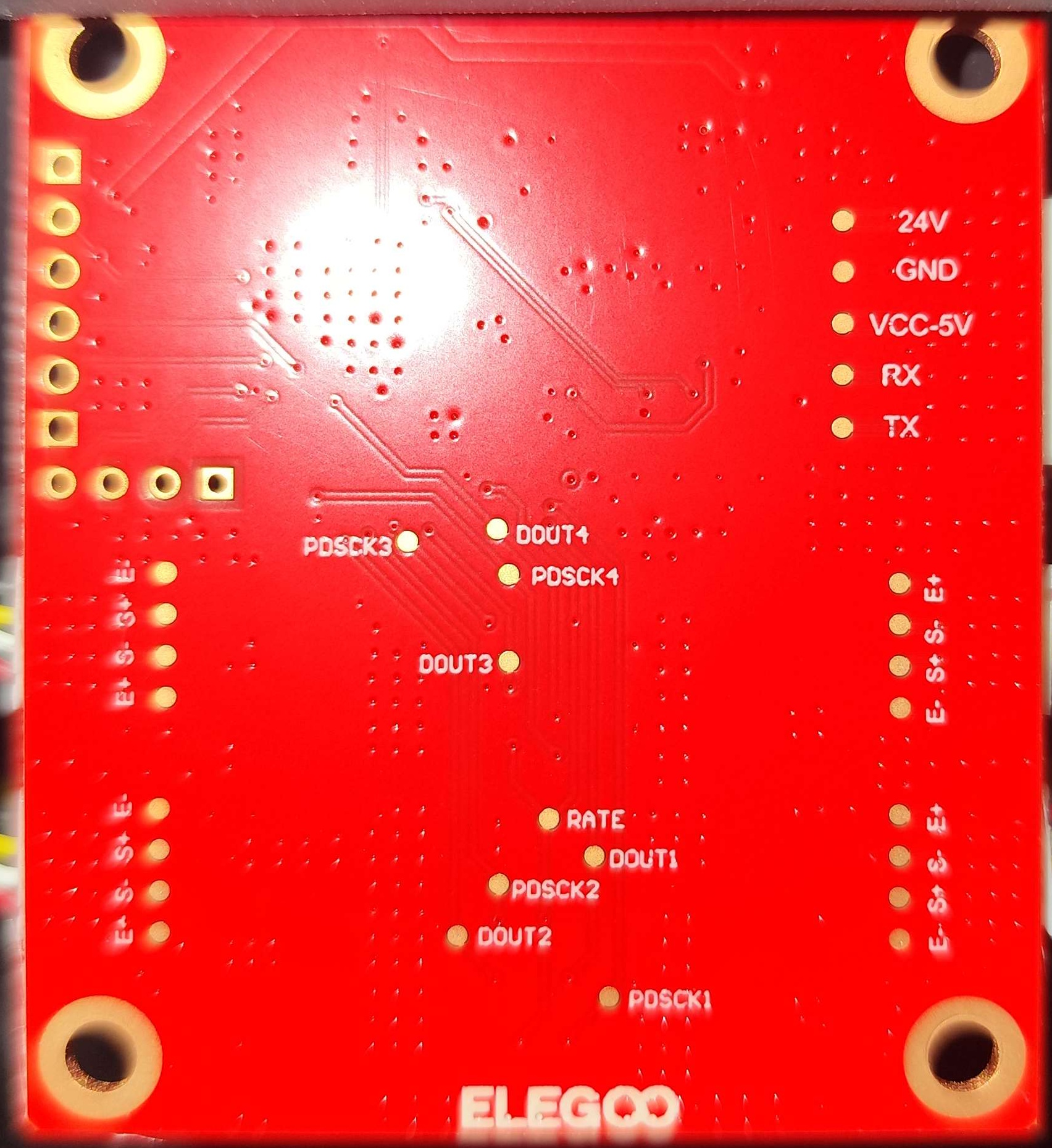

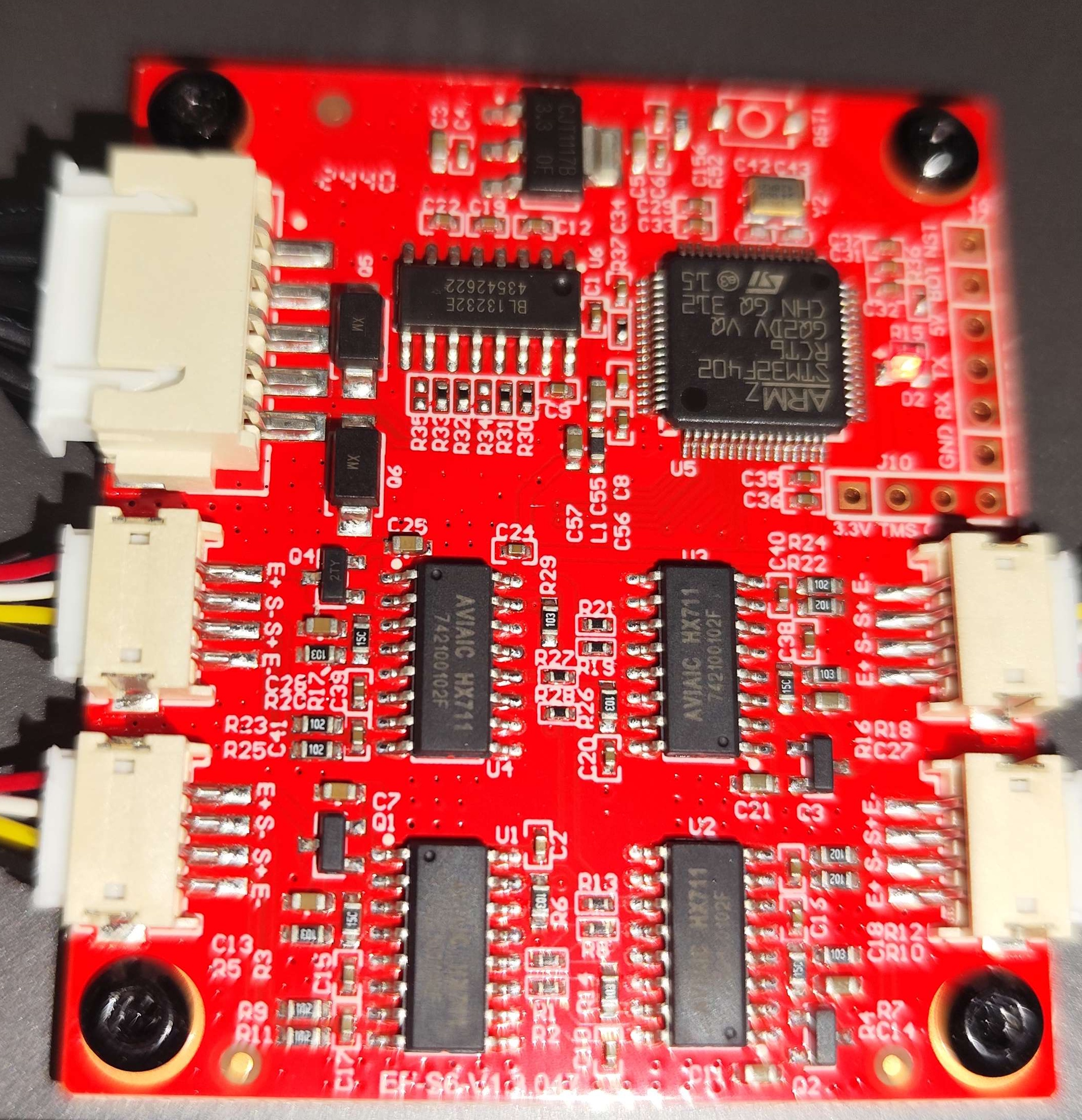

| Front | Back |
|---|---|
 |
 |
| Credit to rabirx on the OpenCentauri Discord. | Credit to rabirx on the OpenCentauri Discord. |

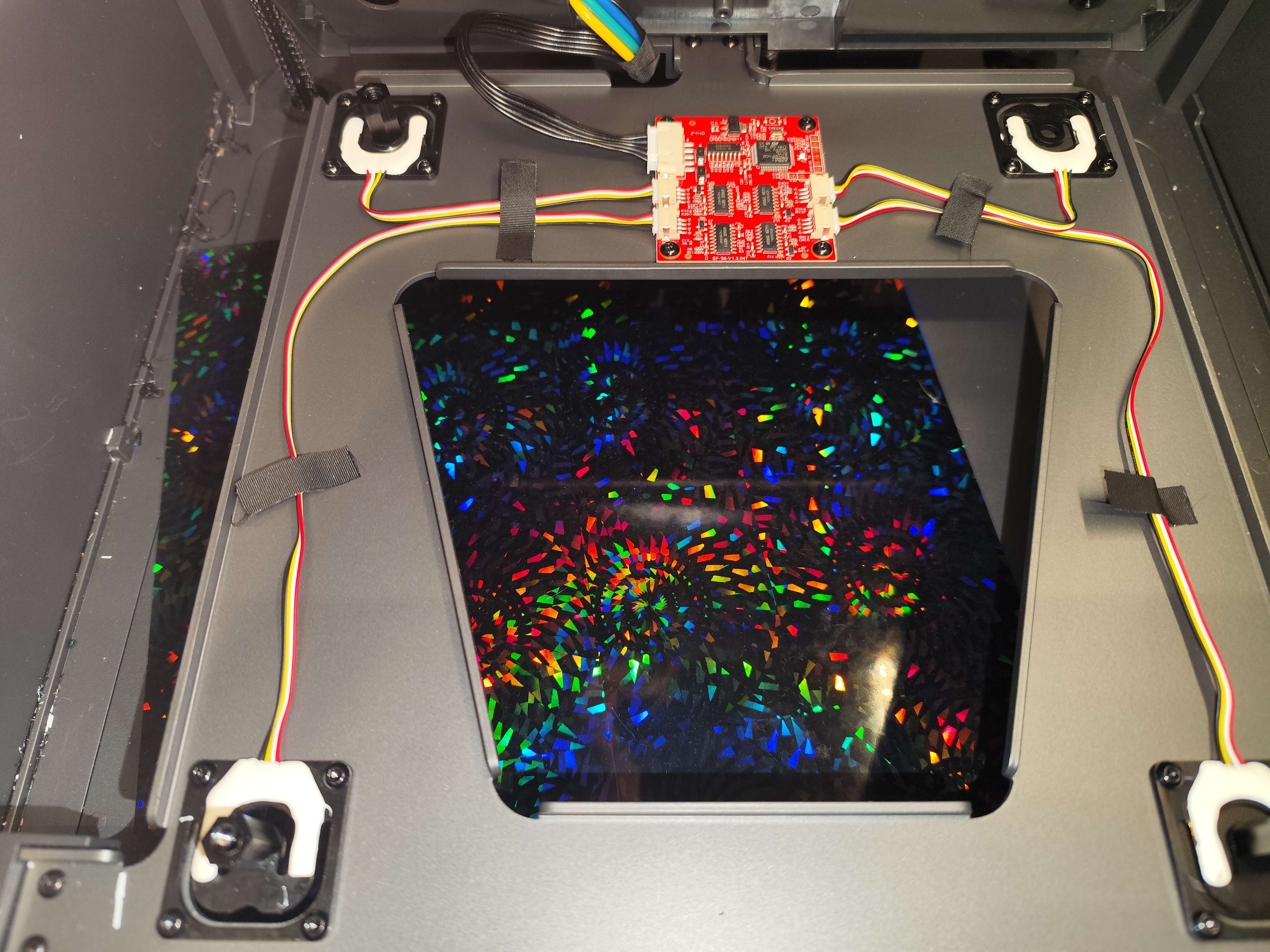

The bed is its own Klipper MCU with an accelerometer and some pressure sensors. The heating is not controlled by the MCU, but via a seperate AC board.
The board connects with serial (not over USB) to the mainboard.
